Recessed Slim Downlight-Die Casting Aluminum
Product Features:
*Full series available to replace traditional down lights
*Ultra thin body for wide range applications
*Long lifespan
*Body: Die-casting aluminium
*Cover: PMMA LGP+ PP diffuser plate
Applications: Home,shopping mall,restaurant, etc.
  • product details
Description
  • L-DL- 0010
  • L-DL- 0020

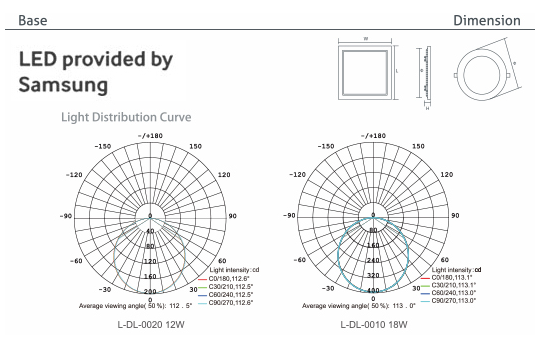

Specification

Item
number

Voltage

Watts

Luminous
Flux

Beam
angle

PF

CCT

CRI

Lifetime

Dimension

Hole size

Dimmable

(V)

(W)

(lm)

(°)

(K)

(hrs)

Φ*L(mm)

(mm)

L-DL-0010-
3W

100-240V

3W

145lm

120°

>0.4

3000K
4000K
6500K

≥80

25000

Φ85*25

Φ75

no

L-DL-0010-
6W

100-240V

6W

330lm

120°

>0.5

3000K
4000K
6500K

≥80

25000

Φ120*25

Φ105

no

L-DL-0010-
9W

100-240V

9W

540lm

120°

>0.9

3000K
4000K
6500K

≥80

25000

Φ150*25

Φ135

no

L-DL-0010-
12W

100-240V

12W

780lm

120°

>0.9

3000K
4000K
6500K

≥80

25000

Φ170*25

Φ155

no

L-DL-0010-
15W

100-240V

15W

1050lm

120°

>0.9

3000K
4000K
6500K

≥80

25000

Φ190*25

Φ175

no

L-DL-0010-
18W

100-240V

18W

1250lm

120°

>0.9

3000K
4000K
6500K

≥80

25000

Φ225*25

Φ205

no

L-DL-0010-
24W

100-240V

24W

1680lm

120°

>0.9

3000K
4000K
6500K

≥80

25000

Φ300*25

Φ285

no

L-DL-0020-
3W

100-240V

3W

145lm

120°

>0.4

3000K
4000K
6500K

≥80

25000

85*85*25

75*75

no

L-DL-0020-
6W

100-240V

6W

330lm

120°

>0.5

3000K
4000K
6500K

≥80

25000

120*120*25

105*105

no

L-DL-0020-
9W

100-240V

9W

540lm

120°

>0.9

3000K
4000K
6500K

≥80

25000

150*150*25

135*135

no

L-DL-0020-
12W

100-240V

12W

720lm

120°

>0.9

3000K
4000K
6500K

≥80

25000

170*170*25

155*155

no

L-DL-0020-
15W

100-240V

15W

1050lm

120°

>0.9

3000K
4000K
6500K

≥80

25000

190*190*25

175*175

no

L-DL-
0020-18W

100-240V

18W

1250lm

120°

>0.9

3000K
4000K
6500K

≥80

25000

225*225*25

205*205

no

L-DL-0020-
24W

100-240V

24W

1680lm

120°

>0.9

3000K
4000K
6500K

≥80

25000

300*300*25

285*285

no
